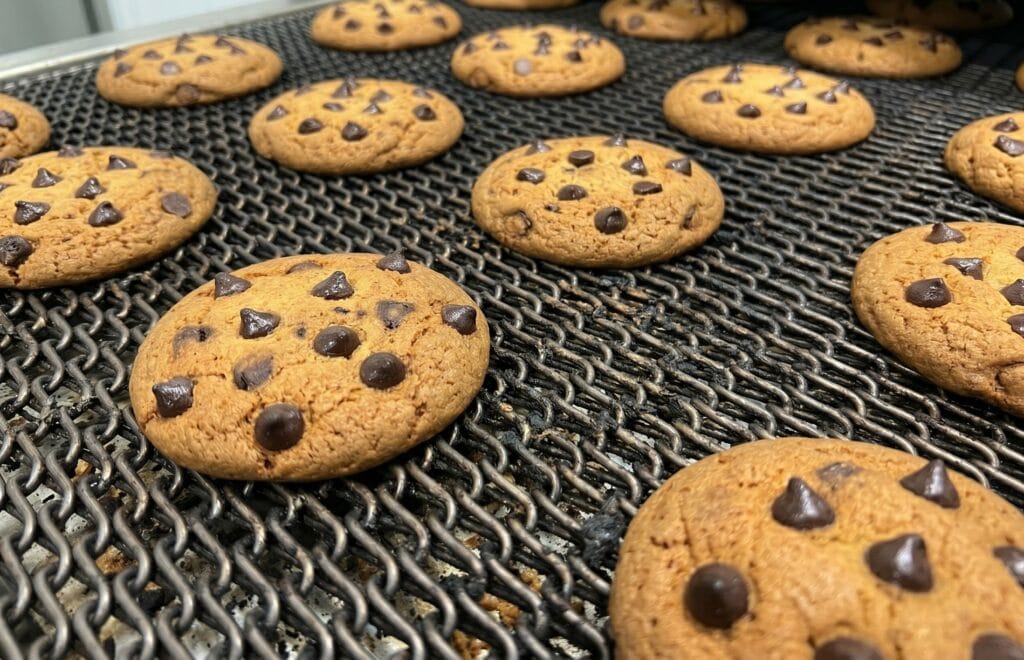

When the Belt Goes Dark: Carbon Buildup in Baking Bands and the Technologies That Fix It

The Z-Series: Engineered for Heat, Vulnerable to Carbon

In continuous tunnel ovens for cookies, crackers, and hard biscuits, the Z-Series laminated baking band is the industry standard. Manufactured from carbon steel or stainless steel alloys, these belts operate continuously at temperatures typically ranging from 200 to 275°C.

The ‘Z’ designation refers to the specialized manufacturing process: a woven spiral mesh is pressed flat under high pressure, creating a Z-shaped cross-section. This delivers a notably flat product-contact surface and rapid conductive heat transfer.

Within the Z line, there are different series (Z47, Z47R, Z28, and Z48) that adapt to specific product needs, tunnel size, and the thermal requirements of the baking process.

What makes the Z-Series effective is also what makes it difficult to clean. The laminating process creates thousands of flattened wire junctions per square meter, forming tight blind spaces where melted sugars and fats could infiltrate by capillary action and then carbonize under sustained heat.

The Chemistry Behind the Black Crust

At oven temperatures above 250°C, sugar-fat mixtures that have flowed into the internal voids of the mesh may undergo caramelization and Maillard reactions. Over repeated heating cycles, they could polymerize into a hard, glassy carbon matrix fused to the steel surface.

The consequences tend to be systemic:

Thermal insulation: The carbon layer blocks heat transfer. Operators often compensate by raising temperatures, driving energy costs up.
Belt tracking: Asymmetric buildup alters the friction coefficient, causing lateral drift and accelerated wear.
Product contamination: Differential thermal expansion causes the carbon to flake off as black spots on the finished product.

Why Wire Brushing Falls Short on Laminated Mesh

The instinctive response in many plants is a battery of rotating wire brushes mounted on the belt’s return path. Brushes do remove loose flour, dry crumbs, and unattached particles effectively. But against baked-on carbon inside a Z band, they tend to fall short for three structural reasons.

1. Geometric impenetrability

The laminating process that creates the flat Z profile also creates microscopic junctions and recesses that no brush bristle can physically enter. The brush rides over the exterior face of the belt, missing the internal voids where sugar originally infiltrated and carbonized.

2. Polishing effect

Repeated friction from rotating brushes against fat-laden carbon may spread and polish the surface layer rather than fracture it. This smoothing can seal the mesh porosity and harden the matrix further, making subsequent cleaning even more difficult.

3. Foreign body risk

Aggressive brushing may dislodge metal bristles. These fragments could become embedded in the belt mesh and transfer to product, creating a physical contamination hazard that might trigger a recall. This is one of the most serious food safety risks associated with conventional brush systems on Z belts.

Wire brushing may remain useful as a light preventive measure for surface-level dust, but only when paired with, and subordinated to, active cleaning technologies that can reach internal carbon.

Four Technologies That Actually Reach the Carbon Inside the Belt

Pin-Roll Mechanical Extraction

Developed by German belt manufacturer STEINHAUS GmbH specifically for their Z-series laminated belts, CLEANBELT uses a rotating cylinder of toothed sprocket discs machined to match the exact aperture geometry of the target belt. Rather than scraping the exterior, the teeth penetrate the internal voids of the mesh, physically dislodging and ejecting solidified carbon plugs from inside the belt as it passes.

The system is self-powered by belt friction, requires no motor, and self-aligns to follow lateral belt movement. Standard downstream brushes then sweep the ejected material into collection trays.

This is a model-dependent solution; the pin-roll cylinder must be custom-machined for the specific belt model in use. A cylinder built for a Z47 cannot be used on a Z48, because the teeth will not align with the wider mesh openings. If the plant ever switches belt types, the cleaning hardware may need to be fully replaced.

CLEANBELT could be highly effective for removing gross carbon accumulation and restoring airflow through the mesh. Its limitation is that it cannot eliminate the molecular-thin films of polymerized fat and allergen residue that may require thermal or photonic intervention.

Dry Saturated Steam: Thermodynamic CIP

Automated dry steam systems, such as KHD Technology Jet System 5, Goodway Technologies PureBelt, and Menikini – General Vapeur Srl Tekno Steam, mount a fixed cleaning head on the belt’s return path and operate while the belt runs. Industrial generators heat a minimal volume of water well above boiling, typically to 165°C at 6 to 10 bar, producing dry saturated steam that is approximately 95 to 96% gas by mass.

Goodway Technologies’ PureBelt Modular Automated Conveyor Belt Cleaning System

Unlike water jets that bounce off the belt surface, steam in its gaseous phase naturally infiltrates the internal spaces of the belt by diffusion. The latent heat transfer could instantly melt polymerized sugars and emulsified fats at contact.

A rotating manifold with patented nozzles varies the attack angle, while an integrated vacuum head simultaneously extracts the condensate and loosened solids. Because moisture on the belt surface evaporates within seconds, no drying time is required before resuming production.

Microbiological results may be consistently strong: steam temperatures above 120°C tend to produce ATP swab readings in the single digits, satisfying the strictest direct-food-contact surface standards. The entire system consumes roughly 15 to 30 liters of mains water per hour, eliminating wastewater treatment costs.

Dry Ice Blasting: Cryogenic Thermal Shock

Supported by equipment manufacturers like Cold Jet , this method projects supersonic CO2 pellets that fracture the carbon crust through kinetic impact and extreme thermal shock at -78.5°C. Rapid sublimation expels debris by explosive force.

The mechanism works in three simultaneous stages:

Kinetic impact fractures the carbon crust.
The extreme thermal gradient between the -78.5°C pellet and the warm substrate causes micro-contraction that breaks the adhesive bond.
Rapid sublimation, with CO2 expanding up to 800 times its solid volume, expels the debris by internal explosive force.

This approach may be most effective when oven surfaces are still at or near operating temperature, because the greater the temperature differential, the more violent the thermal shock.

The key logistical challenges include the CO2 pellet supply chain (pellets must be stored at -80°C and consumed within days), operating noise that may exceed 120 dB, and significant airborne debris that requires dedicated containment and extraction infrastructure. For allergen-sensitive environments, this last point could be a significant concern.

Laser Photothermal Ablation: In-Situ Cleaning Without Contact or Consumables

Laser cleaning is the most technically advanced option currently available for baking belt maintenance. Fiber laser sources operating at 1064 nm direct focused infrared pulses at the belt surface. Dark carbon deposits absorb photon energy at this wavelength with high efficiency; the localized temperature rise is so rapid that the contaminant sublimes directly to plasma and gas, leaving no solid residue on the surface.

IPCO Laser Cleaning for Bake Oven Belts.

The physics produce an inherently self-limiting effect. Once the carbon layer is removed, the underlying carbon steel or stainless steel reflects rather than absorbs the 1064 nm infrared beam, stopping further energy transfer before any damage to the belt substrate could occur. There is no abrasion, no moisture, no mechanical contact, and no consumables beyond electrical power.

Automated systems from manufacturers like IPCO mount laser heads on motorized traverse rails at the oven entrance or exit, cleaning a swath approximately 70 mm wide while the belt runs at normal or idle speed. Coverage rates for a 1,500 mm wide belt typically range from 10 to 15 square meters per hour depending on carbon load. A full overhaul cleaning of a large industrial cookie line could be completed in a 4-hour maintenance window, compared to 24 to 48 hours for chemical stripping or waterblasting.

Once the insulating carbon layer is removed, the belt’s native thermal conductivity is fully restored. Gas setpoint temperatures could be lowered while maintaining the same bake curve, producing direct reductions in fuel consumption and, in many cases, paying back the equipment investment or service contract within months through energy savings alone.

All vaporized organics are captured by a HEPA-filtered vacuum head integrated directly into the laser unit. No carbon debris becomes airborne in the production area, making laser cleaning compatible with open-production environments and allergen management programs.

Making the Business Case

The investment in active cleaning technology for cookie line baking bands should be evaluated against a wider set of financial variables than the maintenance budget line alone:

Energy recovery: Restoring the belt’s thermal conductivity directly reduces gas or electricity consumption per kilogram of product. Plants that have completed laser or steam CIP treatments on fouled Z belts may report being able to lower oven setpoints by a measurable margin while maintaining bake quality.
Reduced product rejects: Eliminating carbon flaking removes the primary source of black-spot defects that trigger automatic line rejection systems, reducing waste and rework.
Belt life extension: Removing the cause of asymmetric tracking stress and abrasive wear could prolong the service life of the belt and associated drive components.
Labor reduction: Automated in-line or semi-automated cleaning systems require significantly fewer personnel hours than manual scraping, brushing, or waterblasting crews.
Compliance assurance: Validated ATP swab results and the elimination of physical foreign body risk directly support HACCP, BRC, IFS, and ISO 22000 audit requirements.
Wastewater cost avoidance: Dry cleaning methods, whether steam or laser, don’t wash organic waste down the drain like traditional waterblasting does. This completely eliminates expensive water treatment fees and environmental permit costs.
