Hydration and Gluten Development: Comparative analysis of mixing technologies

When gluten fails to develop uniformly or temperatures rise uncontrollably, the final product reveals it. The challenge involves ensuring every flour particle receives free water homogeneously without oxidizing the mass or generating friction heat. Many technologies can be chosen according to each baker’s specific production needs.

ByMaite Carricaburu

The Universal Goal: Homogeneous Hydration and an Optimal Protein Network

Regardless of the production scale or the technology used, all industrial mixers pursue the same goal: achieving uniform penetration of free water into every flour particle, facilitating the formation of the gliadin and glutenin network that constitutes the gluten structure.

Three physical variables condition this process in any mixing system:

  • Dough temperature: The heat generated by mechanical friction can degrade proteins and compromise fermentation. Thermal control is critical in all designs.
  • Oxidation: Excessive exposure to oxygen during mixing can modify the disulfide bonds of the gluten, affecting its extensibility and resistance.
  • Distribution of free water: Hydration must be homogeneous from the first contact between flour and water, before any significant mechanical effort is applied.

Production scale, required versatility, and energy footprint are the factors that determine which technology is most suitable for each plant.

Kneading Technologies

Horizontal Spiral Mixer

Spiral mixers are suitable for everything from artisanal production to high-volume batch processing lines. Their design facilitates gluten development through continuous axial movement, which minimizes air incorporation and ensures a controlled thermal increase.

Its main advantages include:

  • Excellent automated discharge capacity, ideal for continuous production flows.
  • High effectiveness for highly structured doughs (rustic bread, ciabatta, high-hydration doughs).
  • Less heat generation by friction compared to high-speed planetary designs.

Its main limitation is operational rigidity: it is not the most flexible option for plants requiring high-throughput continuous mixing.

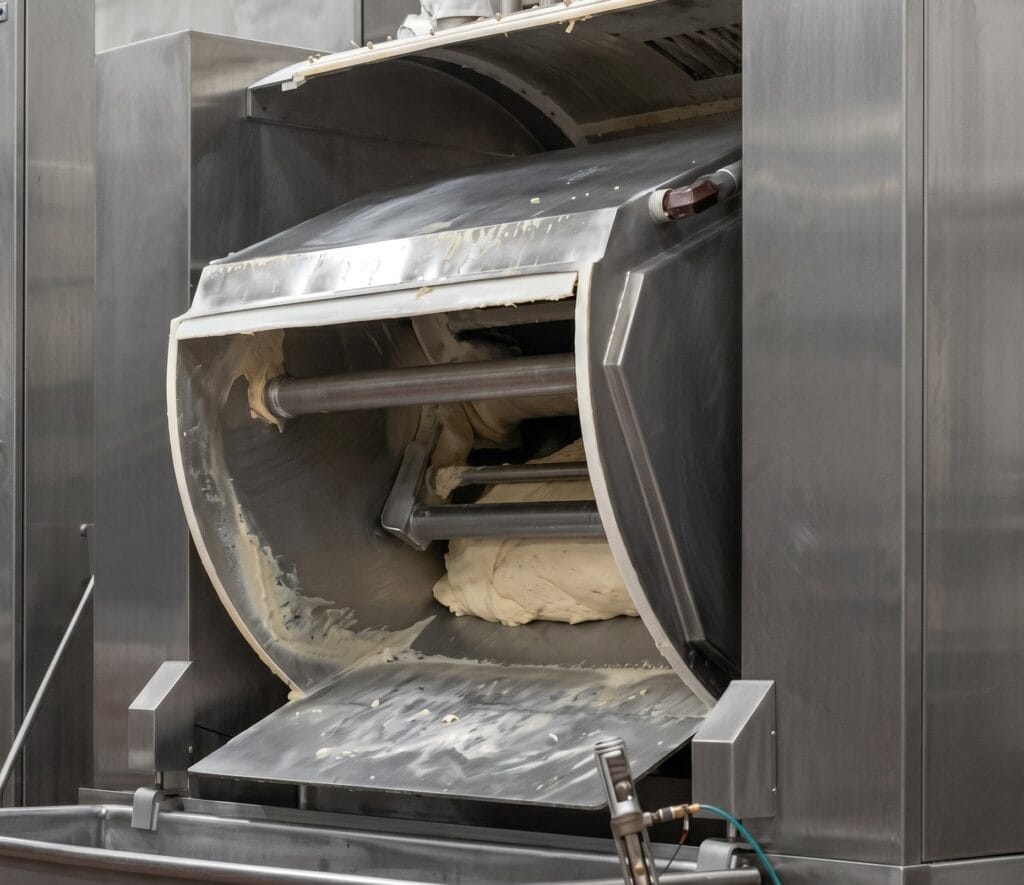

Double Arm Mixers

Double arm mixers replicate the manual folding movements of artisan bakers. Two mechanical arms dive into the bowl to stretch and lift the mass simultaneously.

  • This opposing motion incorporates high levels of oxygen into the dough.
  • Stretching the gluten gently prevents the temperature from rising rapidly.
  • They handle high hydration recipes, accommodating up to 100% water absorption.
  • An overly aggressive speed setting might damage the structure of highly enriched sweet doughs.

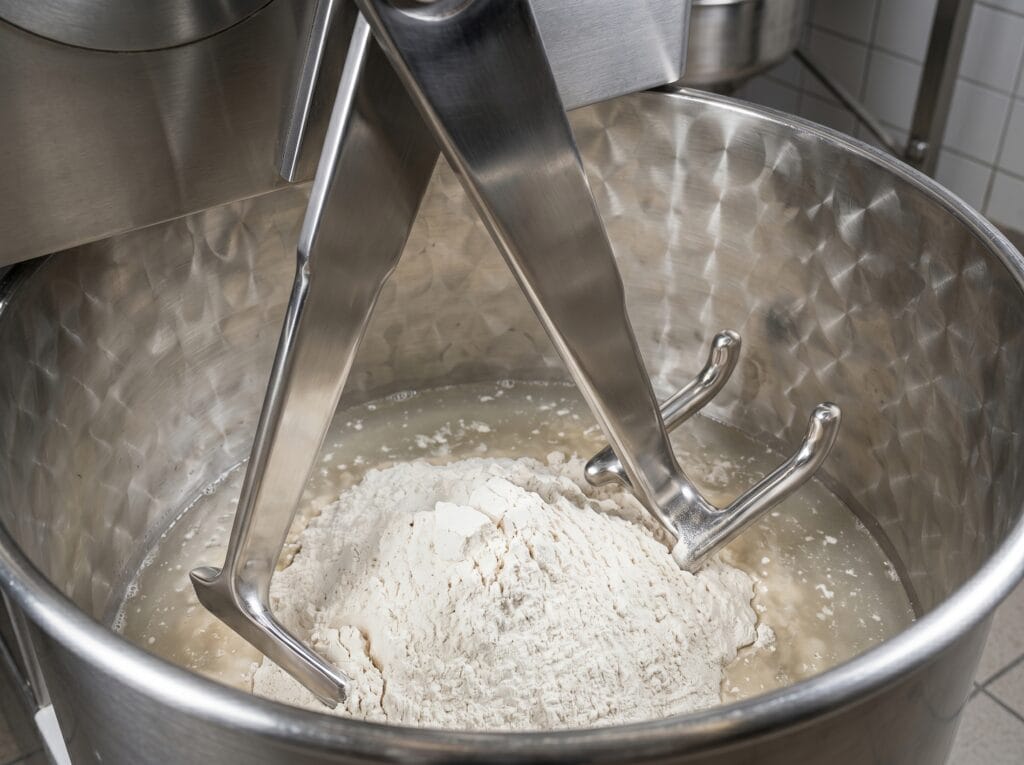

Vertical Vacuum Mixers

Vertical mixing under negative pressure allows precise control over the cellular structure of the dough. Extracting air from the bowl during the final stages of the mixing cycle prevents large gas pockets from expanding inside the matrix.

  • They create a exceptionally fine, tight, and uniform crumb structure.
  • The restricted oxygen environment prevents the oxidation of flour pigments, yielding a noticeably whiter crumb.
  • Vacuum pressure naturally lowers the boiling point of water, providing an intrinsic cooling effect during intense mixing.
  • If the vacuum level is maintained for too long, the dough might lack the necessary oxygen for optimal yeast activity in subsequent fermentation steps.

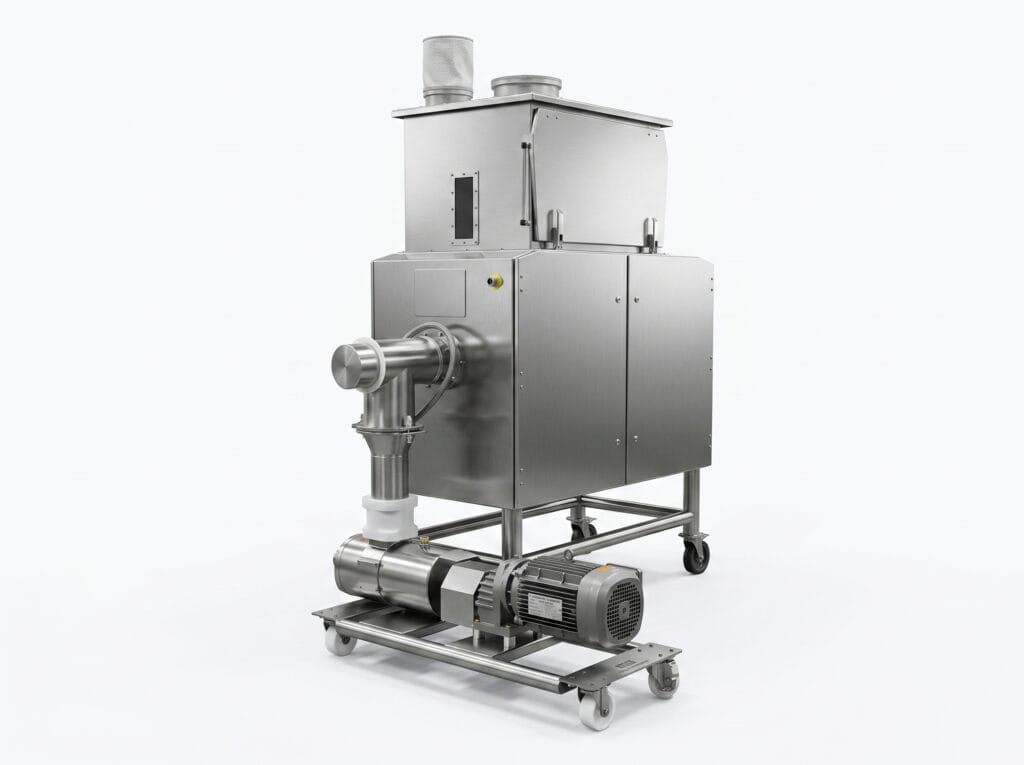

High-Pressure Hydration: The Rapidojet System

Source: https://www.bakeryconcepts.net/

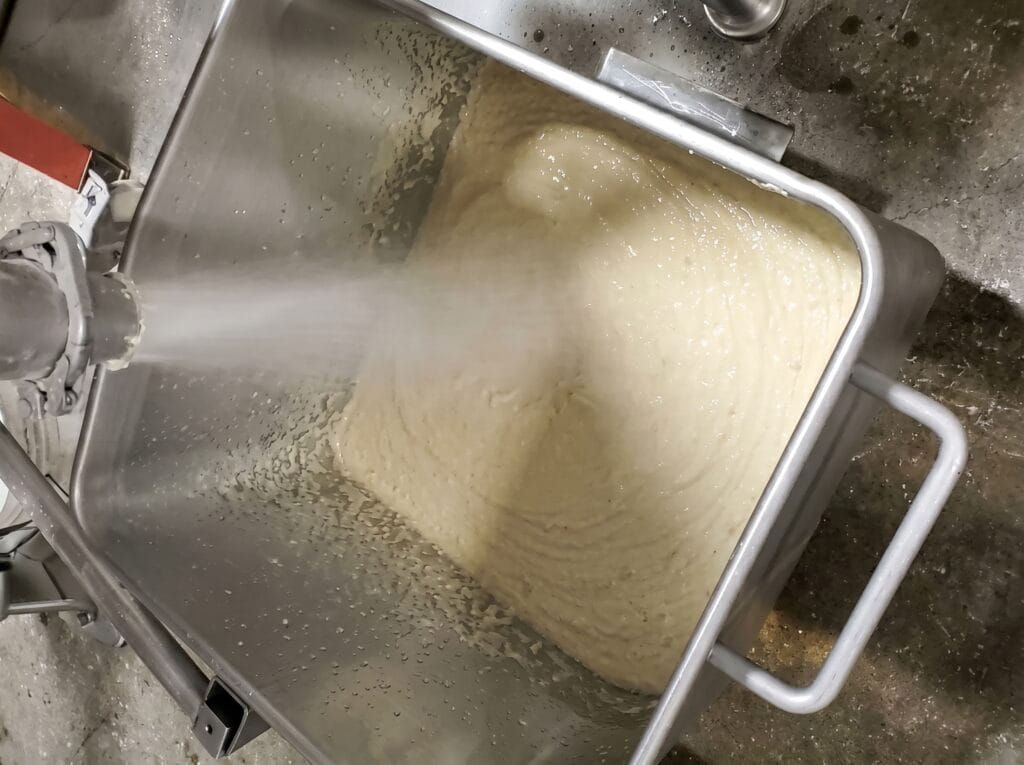

Rapidojet represents a conceptual innovation in mixing thermodynamics. Unlike conventional technologies, this system binds water and flour at the molecular level through high-pressure atomization before any significant mechanical friction is applied. The result is virtually instantaneous and homogeneous hydration from the very first contact.

Source:https://www.bakeryconcepts.net/

Its most prominent technical benefits include:

  • Reduction of electrical consumption from approximately 15 kWh/ton (conventional mixer) to about 1.5 kWh/ton.
  • Reduction of bowl mixing time by up to 50% thanks to the prior functional hydration of the flour.
  • Yield increase of 5 to 10% due to higher water absorption, maintaining the same dough consistency.
  • Superior thermal control: the temperature increase is minimal, eliminating the need for ice water or refrigeration systems in many contexts.
  • Production capacity from 700 to 10,000 kg/hour depending on the model, with the possibility of working in continuous or batch modes.
  • Extreme versatility: it can hydrate anything from a free-flowing powder to a liquid sponge or pre-ferments, adjusting hydration between 40% and over 350%.

The Choice is Not Technical: It is Strategic

All these technologies are capable of producing quality doughs when operated correctly. The relevant question is not which one kneads best in absolute terms, but which one best fits the production profile, product mix, and business model of each plant.
