How Dough and Filling Affect Coiling on Swirl Pastry Lines

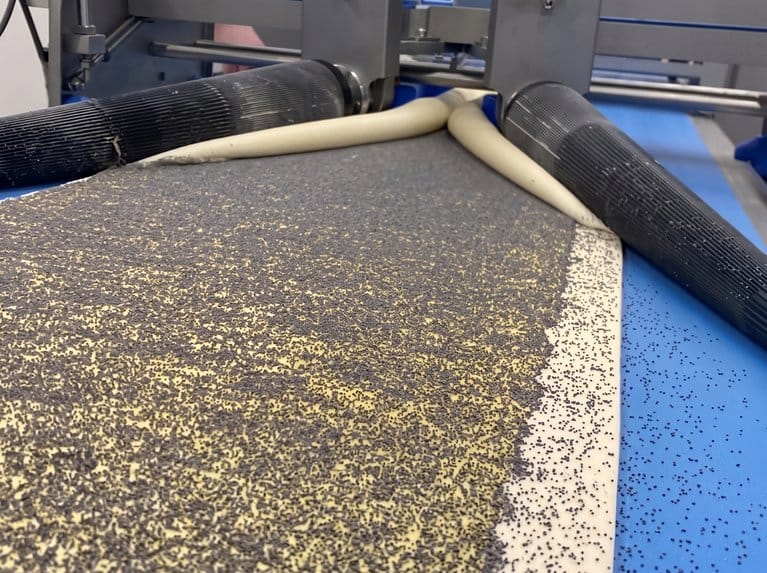

Rademaker’s Double-Coiled Swirl Pastry Production Line. Source: https://www.youtube.com/watch?v=UEUJ4NdwbHg

Swirl Pastry Products and Line Sequence

On continuous pastry make-up lines, swirl products are formed from a filled dough strip that is coiled into a log and sliced. Typical formats include:

Cinnamon rolls: a rich, yeast-leavened sweet dough rolled around a cinnamon-sugar filling.
Pain aux raisins: a laminated, yeast-leavened dough, such as Danish or croissant dough, filled with bake-stable pastry cream and raisins.
Sausage pockets: puff pastry or semi-leavened dough coiled around a meat emulsion or a vegetable filling.
Spectacle or butterfly shapes: two mirrored conical rollers wind both sheet edges toward the centre before the cut.

A typical sequence runs as follows:

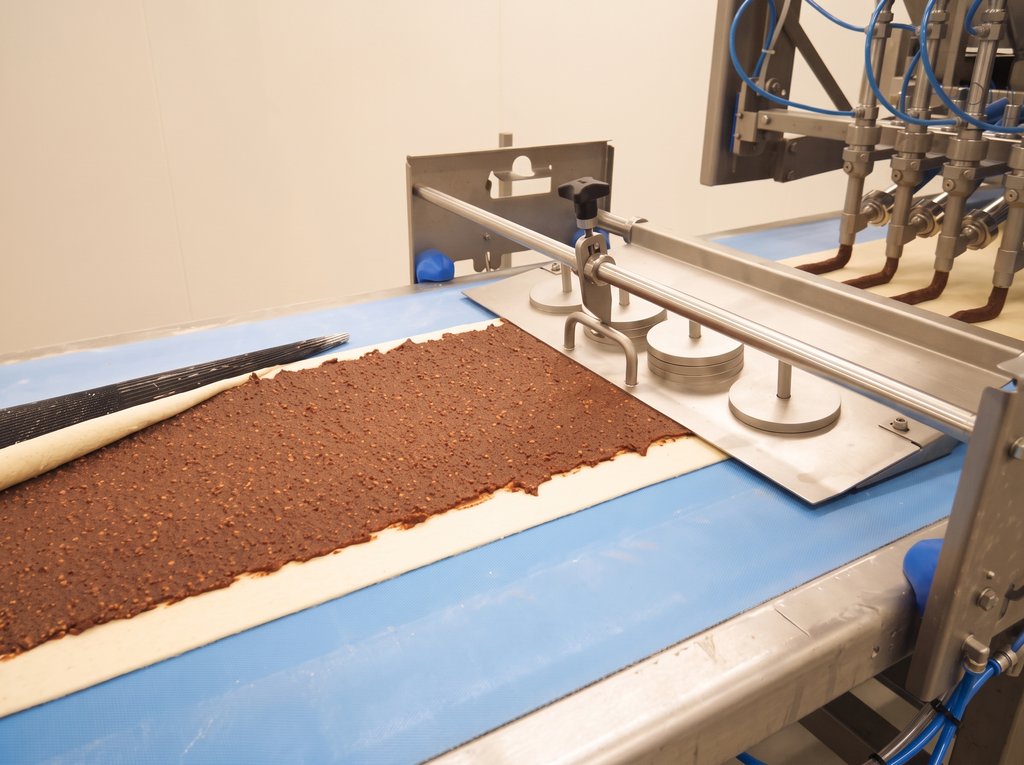

Filling, spreading and rounding stage for cinnamon rolls. Source: https://rademaker.com/bakery-equipment/radini/radini-pastry-make-up-line/

A laminated, gauged dough sheet travels on the make-up belt.
A depositor doses the filling, and a spreading plate levels it.
An obliquely mounted conical roller lifts the free edge and winds the sheet into a continuous log.
A servo-driven guillotine slices the log, and a tray loader places the pieces on baking trays.

Cinnamon rolls serve as the reference product below.

Conical Roller Geometry and Coiling Stages

A cone narrows from base to tip. At a constant rotational speed, its wide end moves faster at the surface than its narrow tip. With the roller set at an adjustable angle over the moving belt, coiling develops in three stages:

Edge pickup: the narrow tip lifts the free edge off the belt.
Folding: wider, faster sections of the cone pull the edge over the filling.
Log growth: the log gains diameter with each turn, and the widening cone leaves room for that volume.

Two conditions commonly disturb this balance:

Overpressure on the growing log: filling may be pushed toward the log ends, a defect often called telescoping.
Irregular sheet thickness: the workable angle tends to shift with sheet width, thickness and dough condition, so a single setting could be hard to hold across a shift.

Dough Handling Window at the Roller

For cinnamon rolls, the formulation carries a heavy load of enriching ingredients against flour weight, notably around 15% sugar, 12% fat and 10% eggs with 54% water absorption and 8% yeast.

Sugar, salt and egg proteins compete with gluten-forming proteins for water, which may weaken the network. Osmophilic yeast is generally preferred at these sugar levels, since non-osmophilic strains may need two to three times longer to ferment.

The balance between tenacity and extensibility shapes how the sheet responds at the cone:

Too tenacious or elastic: the dough may resist the fold and spring back, loosening the swirl after the cut.
Too extensible or slack: the sheet may lack the body to follow the cone and could tear or pleat irregularly.

A warm sheet may start gassing before coiling, and the bubbles can weaken the sheet and burst against the roller, releasing sticky moisture. Warmth may also soften the fat until it migrates toward the roller interface. Upstream, loose gauge rolls tend to yield thick sheets with too few curls, while tight settings may tear the dough.

Stickiness Between Dough and Roller

Uncontrolled stickiness can cause hours of downtime, yet a moderate level helps hold folded layers together, which may keep swirl turns bonded. Common contributing factors include overworking, excess water, flour extraction, water-soluble pentosans, protein composition and proteolytic enzyme activity. Adjusting water absorption is usually the simplest correction.

The Chen-Hoseney stickiness cell offers a way to quantify this before bulk preparation. A probe presses on the dough and is withdrawn quickly, giving three readings:

Maximum separation force, reported as stickiness.
Work of adhesion, the energy spent pulling the probe away.
Distance travelled before separation, read as cohesiveness or dough strength.

A clean release is more likely when the dough holds together internally more strongly than it clings to the cone. If adhesion prevails, a dough film may remain on the roller and mark the following pieces.

Filling Consistency and Layer Stability

Swirl fillings range from sugar-based smears to savoury sausage fillings. For cinnamon rolls, a blend of white and brown sugar is commonly preferred. In spreadable fillings, flow behaviour can strongly influence log stability:

At rest on the sheet: a filling with a clear yield point stays in place, while one that flows too freely may act as a slip layer between turns.
Under the spreading plate: shear temporarily lowers its viscosity, allowing thin, even coverage.
Stabilisation: in sweet fillings, pregelatinized modified starches can bind water, which may limit syneresis and reduce boil-out during baking.

Roller, Belt and Scraper Surfaces

Because sweet dough and sugar-rich fillings cling easily to equipment, contact surfaces in the coiling zone are typically selected for clean release:

Conical roller: a finely polished stainless steel surface leaves fewer micro-pores for gluten to grip or sugar to crystallise, and low surface tension coatings tend to resist sugary doughs while reducing dusting flour.
Conveyor belts: homogeneous polyurethane belts, without exposed fabric layers, resist oil, grease, moisture and bacteria. Sealed edges limit fraying and lint, and matte finishes may reduce the contact area with wet dough.
Scrapers and air knives: scrapers keep belts and rollers free of dried dough build-up, and air knives aimed at the point where the dough lifts toward the cone may assist separation without tearing.

Water absorption, dough temperature, sheet gauge, filling consistency and surface release tend to account for most coiling defects. Each product change or flour batch could shift the workable roller angle, so tracking stickiness and filling consistency between runs may reduce cleaning stops, filling losses and misshapen pieces, protecting margin on continuous swirl lines.
