Why Levain-Style Cookies Can be Hard to Run on Industrial Lines

Levain-style cookies pack cold, dense dough with large chocolate chunks and nuts. On continuous lines, that payload can stall extruders, smear chocolate and separate fat from the matrix. Designing the carrier dough first gives the forming equipment a realistic chance of portioning it cleanly.

ByMaite Carricaburu

How Continuous Cookie Forming Works

Most industrial lines for soft, chunky doughs shape each cookie by extrusion. The basic sequence:

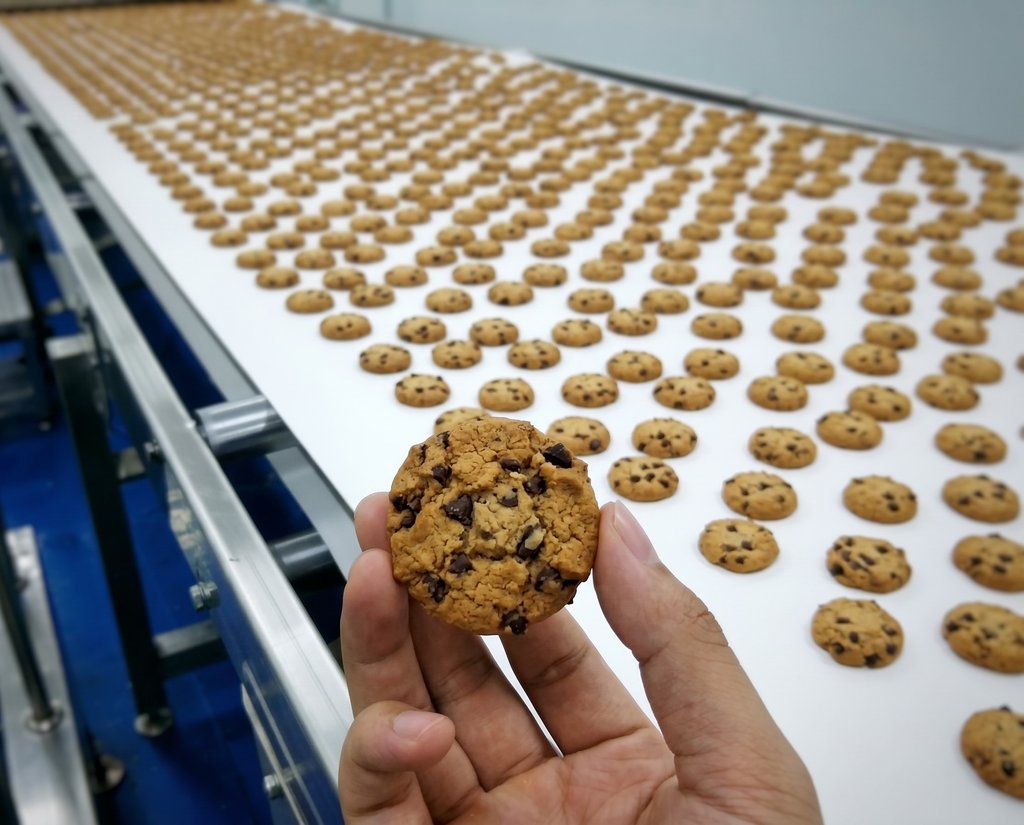

Chocolate chips Cookies continuos line
  • Dough sits in a hopper above the machine.
  • Two counter-rotating grooved feed rolls, or a pump on newer systems, draw the dough down and push it into a pressure chamber.
  • From that chamber, the dough exits through a row of dies, or nozzles, as continuous ropes.
  • A wire or blade cuts each rope at the die face, and the pieces drop onto the oven band.

Every stage applies pressure and friction to the dough. With large inclusions, the narrow points are the roll gap, the chamber and the die opening.

What the Carrier Dough Has to Do

In Levain-style formulas, the inclusion load can approach or exceed the weight of the flour. The base matrix around those solids has three jobs that pull in different directions:

  • Hold heavy chunks in place at rest, so they do not settle in the hopper or lag behind during extrusion.
  • Thin out near the nozzle wall, so the dough moves at low pressure.
  • Keep its liquid fat locked inside a crystal network while under compression.

An extrudable cookie dough behaves like a weak gel, where the elastic response dominates over the viscous one. While that elastic character holds, chunks tend to stay anchored in the matrix. When it fades, the dough may start to behave more like a liquid flowing around the solids.

Inclusion Dragging and Extruder Blockage

When a dough carries enough water to lower its viscosity, chips and chunks tend to drag behind the dough during extrusion and can eventually clog the extruder. As the carrier phase thins, it can flow past the solids, which then crowd together and bridge across the narrowing channel.

Common contributing factors include:

  • Excess free water reducing matrix viscosity.
  • Butter softening from mixing heat or friction in the feed system.
  • Long hopper lay times, since small moisture differences after resting tend to affect consistency more than stickiness.

Shear-thinning behavior works in favor of the line. Hydrocolloids such as xanthan and guar gum can raise dough consistency while increasing thinning under shear. The dough core can then move as a stiff plug carrying the chunks, with lower resistance at the wall, and recover firmness quickly after leaving the nozzle.

Water and Gluten Control

Low added water keeps the dough short.

A continuous gluten network does not form in wheat doughs until added water exceeds roughly 15% of flour weight. Fat also breaks the protein phase into discrete regions, limiting strand formation.

A developed gluten network could bring elastic recovery after extrusion, rising nozzle pressure and a harder bite. Typical levers to limit it:

  • Soft wheat flour with low protein and low damaged starch, which reduces water uptake.
  • Cold-water swelling granular starch, which hydrates after mixing and forms a heat-stable gel, building viscosity to carry chocolate chunks without adding free water.
  • Fine sugars containing starch, used in some artisanal formulas to absorb free water and support a tall dome.

Fat Crystal Structure and Oiling Out

Oiling out happens when free oil migrates toward machine walls and inclusion surfaces. It can lead to loss of cohesion, erratic slip on feed rolls, chunks detaching during cutting and baking, and a greasy final texture.

Variables to consider:

  • Solid fat content. Butter loses solids quickly as it warms. Solid fat content in butter falls by about half between 15°C and 25°C, which narrows the window where the dough stays plastic but firm.
  • Crystal form. Fine beta-prime crystals offer a large surface area that holds liquid oil and stabilizes air cells. If fat is stored above 30°C and recrystallizes slowly, coarse beta crystals may form, and these tend to release oil once shear is applied.
  • Creaming intensity. Fat seepage tends to increase with over-aeration. The Levain-style practice of creaming only until sugar and butter combine keeps density high and limits free oil.
  • Emulsifiers and clean-label alternatives. Interfacial tension between fat and water requires active management. While synthetic conditioners like DATEM or SSL effectively coat flour and sugar particles, clean-label lines rely on standard sunflower or soy lecithin, egg yolk phospholipids, or distilled monoglycerides to stabilize the oil phase under extrusion pressure.

Fat choice shapes the whole matrix. In texture testing, a dough made with high-solid palm fraction was very hard, liquid olein produced a soft dough with little structure, and butter sat between both.

Dough Temperature as a Supporting Variable

Wire-cut and deposited doughs typically run between 16°C and 24°C. Above that range, early fat melting can cause shape loss, erratic weights, sticking to cutters and excessive spread in the first minutes of baking.

Because these doughs carry so little water, chilling the water alone has limited effect. In common practice:

  • Jacketed horizontal mixers cooled with chilled water or glycol, with mixing stopped at a target dough temperature instead of a fixed time.
  • Carbon dioxide snow injected into the mixer for high-chocolate soft cookies.
  • Pre-chilled chunks added as the last ingredient, at low speed and for a short time, to limit breakage and smearing.

How Forming Equipment Interacts With the Matrix

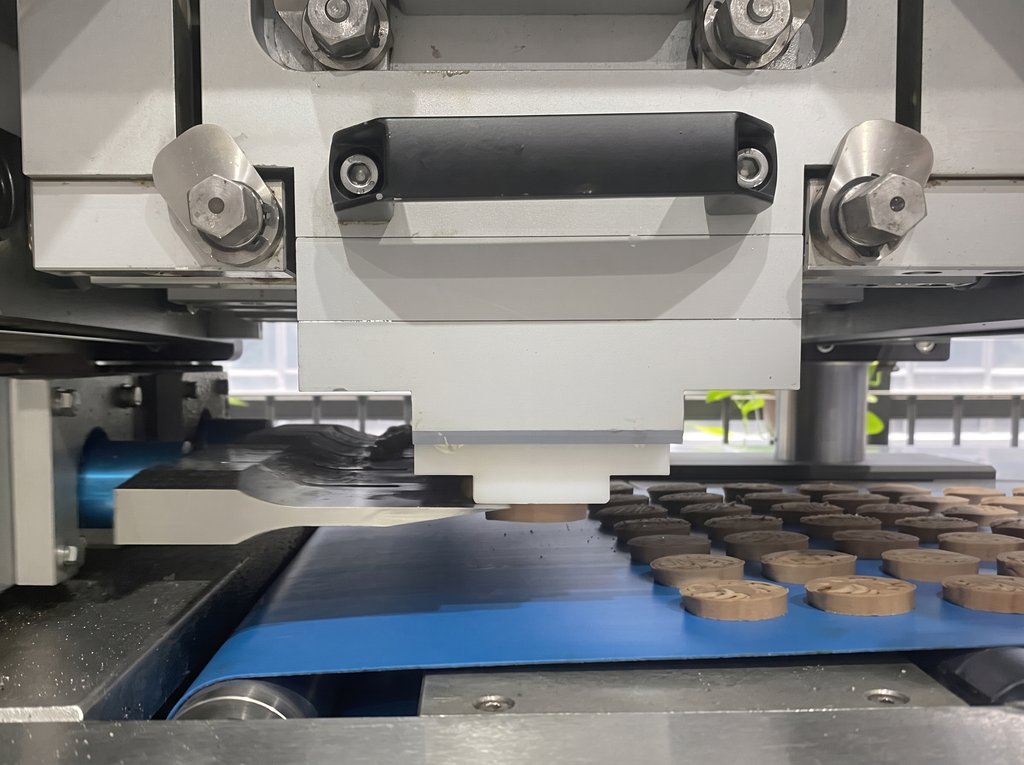

Continuous ultrasonic cutting process in a cookie production line. Source: https://www.youtube.com/watch?v=HOWN6ECqQNg

Even a well-built carrier dough meets mechanical limits at the former:

  • Feed rolls. Gaps narrower than the largest inclusion crush chunks before reaching the die.
  • Wire cutting. Tensioned wires striking cold chocolate or nuts deflect, push chunks through the dough face or break. Weight variations also climb when inclusions obstruct die openings.
  • Low-pressure feeding. Positive-displacement systems shorten the product path and reduce friction heat, while vacuum draws out air pockets around large pieces.
  • Cutting heads. Servo guillotines, opposing plates and ultrasonic blades slice inclusions cleanly. Iris diaphragms close radially, pushing chunks inward to form taller mounds.
  • Die surfaces. Low-friction polymers and streamlined infeed paths eliminate sharp directional shifts, letting the dough glide along walls while the core stays cool.

Friction creates heat that can melt chocolate chips directly into the surrounding dough.

Line Impact

On most lines, the carrier matrix sets the ceiling on what forming equipment can achieve. A dough with controlled water, stable fat crystals and enough elastic structure tends to hold chunks, keep weights consistent and reduce stoppages from clogging or wire breaks. Ingredient specifications, mixer cooling capacity and existing formers will constrain how far each variable can move, so incremental adjustments, tracked against piece weight and scrap, often give the clearest view of margin gains.
